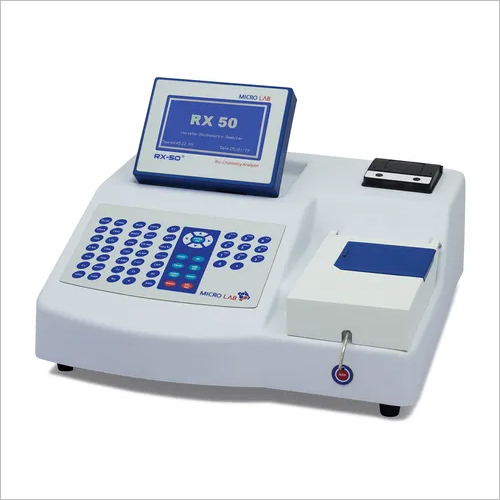

Automatic Biochemistry Analyzer

Name: Automatic Biochemistry Analyzer
Brand: Microlab Instruments Private Limited
Price: 130000 INR
Availability: InStock

Price 130000 INR/ Unit

Get a Price/Quote

MOQ : 1 Unit

Automatic Biochemistry Analyzer Trade Information

Minimum Order Quantity
1 Unit

FOB Port
Ahmedabad

Payment Terms
Telegraphic Transfer (T/T), Paypal, Cash in Advance (CID), Cheque

Supply Ability
500 Units Per Month

Delivery Time
1 Week

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Carton packing available.

Main Export Market(s)
Middle East, Asia, Africa

Main Domestic Market
All India

Certifications
An ISO 9001:2008 certified company.

About Automatic Biochemistry Analyzer

We are a remarkable entity, engaged in offering high quality Automatic Biochemistry Analyzer that is used in the hospital and other related places for biochemical tests. This analyzer is manufactured using advanced engineering concepts and basic components as per the defined industrial norms. Also, this equipment is precisely examined by our deft quality inspectors to ensure its trouble free working. Clients can avail this Semi Automatic Biochemistry Analyzer from us in several technical specification at industry leading rate.

Features of Automatic Biochemistry Analyzer:

User friendly software
End Point Method - Storage of Abs of Reagent blank in memory
Editing of patient iD, Name (12 characters), Factor Print out of laboratory name & Doctor's name
For Kinetic test: On line Graph & OD. Graph editing facility. Estimation of result
Battery Back-up for 90 mins - Optional
Air purge between samples
Coagulation test like PT with parameters ISI value / INR / Ratio, APTT.
Storage of 1000 test results in the memory with patient ID.
PS2 Keyboard connection optional. Lamp Saver mode.
35 Direct Test Keys for Test Selection.
Utility Mode for Self diagnostics.
Sample Type : Serum / Plasma / CSF / Urine / Whole Blood / Hemoiysate

METHODS OF CALCULATION

Absorbance
End Point with standard / factor
Kinetics
Fixed time
Differential
Coagulation
Multipoint upto 10 standards

METHODS OF ASSAY

ABS/EP with Factor/KIN/Fix Time/Differential/ Multi point of 10 Standards.

Product Details of Automatic Biochemistry Analyzer

Maximum Relative Humidity	80 %
Power Consumption	80 W
Weight	6 Kg
Temperature	10 to 40 Degree C
Model Name/Number	RX-50
Voltage	110-220 V
Frequency	50 - 60 Hz
Dimensions	36 cm x 41 cm x 15 cm
Brand	Micro Lab
Usage/Application	Laboratory
Instrument Name	Biochemistry Analyzer

OPTICAL SYSTEM

Principle	Absorption spectrometry
Range of measurement	From 0.1 to 3.0A for 340nm, 0.1 to 3.5A WL range 405 to 670nm
Nominal spectral range	Automatic via filter wheel
Filters	340, 405, 450, 505, 546, 578, 630 and 670nm interference type
Bandwidth	8 nm (+ 2nm)
Reading error	+ 5% at 0.10 A + 2% at 1.00 A + 2% at 2.00 A
Light source	Quartz Halogen lamp 12 V / 20 W, 2000 hours Optional 6V/ 10 W
Zero	Automatic
Settings	Monochromatic and Bichromatic readings.
Detector	Schottkey type Photodiode - Silicon

THERMOSTAT SYSTEM

Peltier regulated 25^o, 30^o & 37^oC, RT programmed
Accuracy	+ 0.1^oC

CUVETTES - DUAL MODE

Flow cell of 18µL
Removable cuvettes	Square micro plastic cuvettes & Round test tube diameter 13mm

PRINTER

Type	Fast Thermal Graphic
Printing speed	50 mm/sec
Dots per line	384 dots/line
Paper	Thermo sensitive, 57 mm wide
RS232	For PC Connection

SCREEN AND KEYBOARD

LCD blue LED back lit	240 x 128 pixels
Keyboard	Tactile Soft - Touch

ASPIRATION SYSTEM

Continuous flow cell system with peristaltic pump.

Sipping Reagent volume programmable from 100µL to 2000µL Air purge volume: programmable from 30µL to 150µL

PROGRAMMING

235 Tests, 9 units, Quality control storage of the last 30 results.
Memory	128 KB EEPROM

QUALITY CONTROL

2 Controls per test - Normal & Abnormal

Levy-Jennings charts

POWER / DIMENSIONS

Voltage	110 - 220V + 10%
Frequency	50 - 60 Hz
Maximum power	<80W
Temperature	10^oC to 40^oC
Maximum relative humidity	80%
Dimensions	38 cm x 41 cmx 15 cm
Weight	6 kgs

For more details please check the PDF

High Accuracy with Latest Technology

Benefit from state-of-the-art technology and advanced sensor components to achieve highly accurate biochemistry analysis. The indigenous software enhances test precision and workflow, making this analyzer a trustworthy choice for laboratories seeking dependable results.

User-Friendly and Efficient Operation

Engineered for ease of use, the Automatic Biochemistry Analyzer boasts a semi-automatic operating type and an intuitive LCD display. Even users with minimal technical background can operate the system efficiently, supported by its straightforward synchronization process and substantial internal memory.

Durable Design and Safe Usage

Constructed with a focus on both safety and durability, the device is rust-proof, supports universal voltage, and is intended for environments with up to 80% humidity between 10 and 40C. The robust exterior and reliable components minimize maintenance concerns while ensuring enduring performance.

FAQ's of Automatic Biochemistry Analyzer:

Q: How does the Automatic Biochemistry Analyzer synchronize test results with external devices?

A: The analyzer synchronizes data with a PC or printer via an external cable, enabling efficient data transfer and record management for further analysis or printing.

Q: What are the operational benefits of using this biochemistry analyzer?

A: It offers high accuracy, real-time operation, and a sizable memory for up to 1000 test results, streamlining laboratory workflows and reducing manual errors.

Q: Where is this analyzer best suited for use?

A: This device is ideal for clinical laboratories, hospitals, and diagnostic centers that require reliable, quick, and accurate biochemical analysis of blood samples.

Q: What ambient conditions are required for proper operation of the analyzer?

A: The analyzer operates optimally in humidity levels up to 80% and temperatures ranging from 10C to 40C, ensuring flexibility for various clinical environments.

Q: How is the sample data stored and managed within the analyzer?

A: Test results are stored in its internal memory, which can accommodate up to 1000 test results. These can be accessed on the LCD display and exported via cable to external systems.

Q: What makes this analyzer safe and easy to operate?

A: It features an intuitive LCD display, simple semi-automatic operation, and a rust-proof exterior, all designed for safe, user-friendly use with minimal training.
