Clinical Chemistry Elisa Reader

Clinical Chemistry Elisa Reader
Clinical Chemistry Elisa Reader
Product Code : ARX-3IN1
Brand Name : MICRO LAB
Trade Information
  • Unit of Measure
  • Unit/Units
  • Payment Terms
  • Cash in Advance (CID), Cheque
  • Delivery Time
  • Week
  • Packaging Details
  • Carton packing available.
  • Main Export Market(s)
  • Asia, Africa
  • Certifications
  • An ISO 9001:2008 certified company.
Product Description

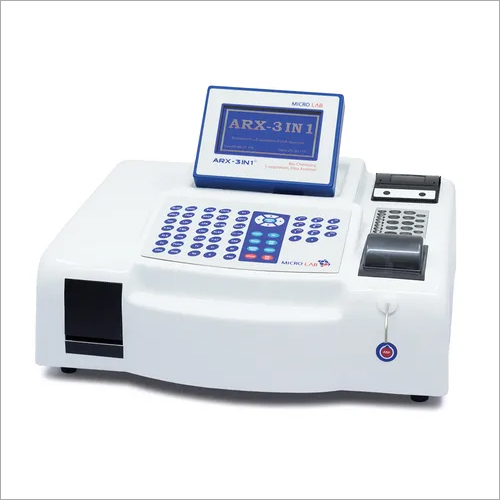

Clinical Chemistry/Coagulation/Elisa Reader (ARX-3IN1)

Specifications

ARX 3IN1 is our patent applied product that can perform multiple operations i.e. Biochemistry / Elisa / Coagulation

 Advantages of ARX 3IN 1 over sole biochemistry

  • ARX-3 IN 1 can do actual elisa tests with either cut off method for tests like HIV, HbsAg, HCV etc and multi-standard tests for T3,T4,TSH,LH,FSH,PRL etc and many other hormonal parameters. It is an open system.

  • Absorbance OD range is 0.000 to 3.000 OD where as other semi auto analysers have maximum up to 2.2 or 2.3 OD and above that it goes into saturation and affects the linearity of the test.

  • ARX-3 IN 1 shows online graph for kinetic tests while the test is in progress and also shows the estimation concentration during the test.

  • ARX-3 IN 1 has 3 levels of quality control,i.e. Low, Normal and High where as other units have mainly 2 levels of control.

  • ARX-3 IN 1 has inbuilt incubator where as other units has separate attachment for the incubator and occupies more space in a lab.

  • ARX-3 IN 1 has phramed tubings for pump which has excellent resistance to normal wear and tear where as other units have used silicon tubing and needs to replace every 4-6 months based on the work load.

• User friendly software
• Editing of patient ID, Name (12 characters), Factor
• Print out of laboratory name & Doctor's name.
• Coagulation test like PT with Magnetic Stirrer.
• Storage of 2000 test results in the memory with patient ID.
• PS2 Keyboard connection optional.
• Lamp Saver mode.

METHODS OF CALCULATIONS

• Absorbance
• End Point with standard / factor
• Kinetics
• Fixed time
• Differential
• Coagulation
• Multipoint upto 10 standards

ASPIRATION SYSTEM

Continuous flow system with bi-directional Pump.

CUVETTES : DUAL MODE

Flow Cell of 18 µL

REMOVABLE CUVETTES

Macro, Semi Micro, Micro

COAGULATION

Mixing by magnetic motor / stirrer INR / ISI Value % / Seconds Auto / Manual start

Parameters

PT / APTT / Fibrinogen

Filter

405 nm / 630 nm.

ELISA STRIP READER

Wells

8 position

Filters

405 nm/450 nm / 630 nm

Methods

Cut-off / Multi standard with EP / KIN / Fix Time

O.D. Range

0 - 3.5A

OPTICAL SYSTEM

Principle

Absorption spectrometry

Range of measurement

From – 0.1 to 3.0A

Nominal spectral range

Automatic via filter wheel

Filters

340, 405, 450, 505, 546, 578, 630 and 670nm interference type

Bandwidth

10 nm (± 2nm)

Reading error

± 5% at 0.10 A
± 2% at 1.00 A
± 2% at 2.00 A

Light source

Halogen lamp

Zero

Automatic

Settings

Monochromatic and Bichromatic readings.

Detector

Schottkey type Photodiode - Silicon

THERMOSTAT SYSTEM

Peltier regulated 25°, 30° & 37°C programmed

Accuracy

± 0.2°C

CUVETTES - DUAL MODE

Flow cell of 18 µL

Removable cuvettes

Macro, Semi-micro & Micro

PRINTER

Type

Fast Thermal Graphic

Printing speed

50 mm/sec

Dots per line

384 dots/line

Paper

Thermosensitive - 57 mm wide, Easy Loading

Programming

On/Off test wise

SCREEN AND KEYBOARD

Screen

Graphic LCD 240 x 128 pixels

Back Light

Blue LED Back lit

Keyboard

Tactile Soft - Touch

SUCTION SYSTEM

Continuous flow system with peristaltic gear pump.

Sipping volume can be programmed from 200µ l to 5.0 ml.

PROGRAMMING

Table of tests

up to 235

Table of units

up to 9 units

Quality control storage of the last 30 results

Memory

512 KB EEPROM

QUALITY CONTROL

2 Controls per test - Normal & Abnormal

Levy-Jennings charts

Westgard's rules

POWER / DIMENSIONS

Voltage

110-220 V

Frequency

50 - 60 Hz

Maximum power

110W

Temperature

10° to 40° C

Maximum relative humidity

80%

Dimensions

45 cm x 41 cm X 17

Weight

8 kgs
