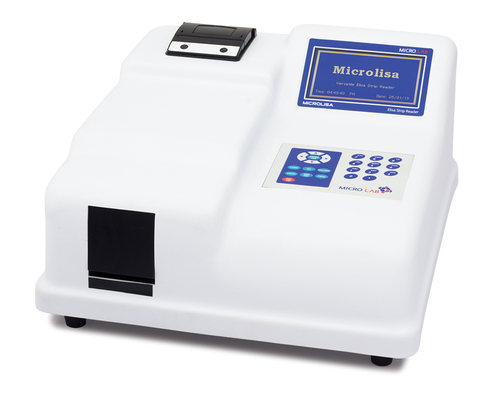

Elisa Strip Reader

Name: Elisa Strip Reader
Brand: Microlab Instruments Private Limited
Price: 100000 INR
Availability: InStock

Price 100000 INR/ Unit

Get a Price/Quote

MOQ : 1 Piece

Elisa Strip Reader Specification

Capacity
N/A T/hr

Color
White

Elisa Strip Reader Trade Information

Minimum Order Quantity
1 Piece

FOB Port
ahmedabad

Payment Terms
Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T), Cheque

Supply Ability
100 Pieces Per Day

Delivery Time
1-3 Week

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
box

Main Export Market(s)
Asia, Africa

Main Domestic Market
All India

Certifications
CE ISO 13485 ISO 9001

About Elisa Strip Reader

Salient Features of Top Quality Elisa Strip Reader :-

We have obtained a huge reputation in the market by manufacturing, exporting and supplying best quality of Elisa Strip Reader in Ahmedabad, Gujarat, India to our customers. The offered product is made by using high grade of material under the tight guidance of our expert. The price of this product is very economical also.

About MICRO LAB INSTRUMENTS :-

Accurate and timely diagnosis helps in curbing diseases at initial stage. With growing number of diagnostic centers, demand for these machines has been also increasing. In order to meet this demand, we, Micro Lab Instruments, started manufacturing high quality diagnostic equipment. With years of experience, we have become one of the leading manufacturers, suppliers and expoters of the same. Our range of products include Biochemistry Analyzer, Automatic Biochemistry Analyzer, Elisa Strip Reader, Dry Bath Incubator, Elisa Plate Washer and many more. Moreover, we have a diligent team of scientists.

Product Details of Elisa Strip Reader

Dimensions	44 cm x 38 cm x 21 cm
Maximum Power	<60 W
Relative Humidity	80%
Temperature	10 Degree C-42 Degree C
Weight	6 Kg
Voltage	110-220 V
Frequency	50 - 60 Hz
Usage/Application	Clinical, Lab, Hospital, etc
Model Name/Number	Microlisa
Brand	Micro Lab

Optical System

Principle	Absorption spectrometry
Range of measurement	From -0.1 to 3.4A
Normal Spectral range	Automatic via filter wheel
Filters	405, 450, 492, 630 nm. 4 extra position
Bandwidth	10nm (±2 nm)
Reading error	2% at 2.5 A
Light source	LED
Zero	Automatic
Settings	Monochromatic & Bichromatic readings.
Detector	Schottkey type photodiode - Silicon

Printer

Type	Fast Thermal Graphic
Printing speed	50 mm/sec
Dots per line	384 dots/line
Paper	Thermo sensitive, 57 mm wide
	Easy paper loading

Programming

Table of tests	up to 200
Table of units	up to 9 units
Quality control storage of the last 30 results
Memory	128 KB EEPROM

Power / Dimensions

Voltage	110-220 V
Frequency	50 - 60 Hz
Maximum power	<60W
Temperature	10° to 42° C
Maximum relative humidity	80%
Dimensions	44 x 38 x 21 cms
Weight	6 kgs

Efficient Storage Capacity

With the ability to store up to 1000 test results, the Elisa Strip Reader streamlines workflow and record management in busy laboratories, reducing data loss and maximizing efficiency.

Flexible Operating Conditions

Designed to function effectively in temperature conditions from 10C to 42C and humidity up to 80%, this reader ensures stable performance across various climates, making it a reliable choice for diverse settings across India.

User-Friendly and Lightweight

Weighing only 6 kilograms, this device is easy to transport and set up within your laboratory space. The intuitive design and robust construction make it suitable for routine diagnostics and high-throughput testing.

FAQ's of Elisa Strip Reader:

Q: How does the Elisa Strip Reader store and manage test results?

A: The Elisa Strip Reader can store up to 1000 test results, allowing laboratories to efficiently manage, review, and retrieve data for quality control and reporting purposes.

Q: What power supply is required for operating the Elisa Strip Reader?

A: This device supports a universal voltage input of 110-220V, making it compatible with standard electrical systems found in laboratories across India and internationally.

Q: When is the Elisa Strip Reader most beneficial for laboratory use?

A: The reader is especially beneficial in settings with high testing volumes or where data storage and reliability are crucial, such as research centers, diagnostic laboratories, and hospitals.

Q: Where can the Elisa Strip Reader be installed and used?

A: It is suitable for use in clinical laboratories, hospitals, research institutions, and other diagnostic settings, thanks to its compact size and adaptable operation in varied environmental conditions.

Q: What is the process for using the Elisa Strip Reader?

A: To use the reader, simply load the ELISA strips as per the instructions, initiate the reading process, and the instrument will automatically record and store the results within its memory for up to 1000 tests.

Q: How does the weight and color of the device contribute to its usability?

A: At only 6 kilograms and with a white, easily visible color, the reader is both portable and simple to incorporate into existing laboratory workflows, enhancing accessibility and aesthetics.

Q: What are the key benefits of using the Elisa Strip Reader?

A: Key benefits include its large test storage capacity, adaptability to various laboratory environments across India, straightforward power requirements, and reliable performance in a compact, user-friendly form factor.
