Semi Automated Biochemistry Analyzer Semi Automated Biochemistry Analyzer Semi Automated Biochemistry Analyzer

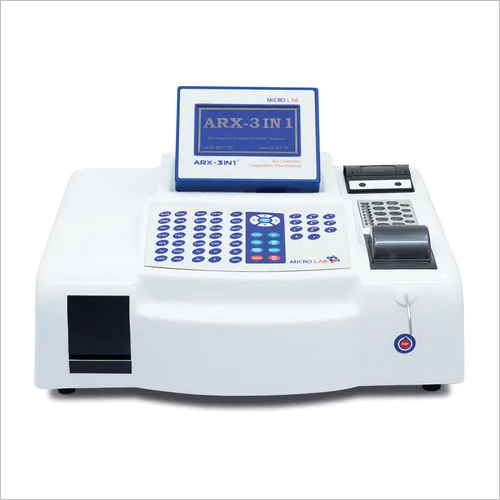

Semi Automated Biochemistry Analyzer
Semi Automated Biochemistry Analyzer Semi Automated Biochemistry Analyzer

Semi Automated Biochemistry Analyzer

220000 INR/Unit

Product Details:

  • Application N/A
  • Usage for Laboratory use
  • Number of Specimens N/A
  • Dimension(L*W*H) N/A Inch (in)
  • Capacity N/A Kg/hr
  • Gas Pressure N/A kgf/cm2
  • Voltage 110-220 Volt (v)
  • Supply Ability : 500 Unit Per Month
  • Click to view more
X

Price And Quantity

  • 1 Unit
  • 220000 INR/Unit

Product Specifications

  • 110-220 V
  • All Biochemistry test plus PT and APTT
  • N/A Inch (in)
  • 110-220 Volt (v)
  • N/A Kg/hr
  • N/A
  • N/A Inch (in)
  • N/A kgf/cm2
  • N/A
  • 7 Kilograms (kg)
  • N/A
  • N/A
  • for Laboratory use
  • N/A Grams (g)
  • White
  • N/A Inch (in)
  • 10 to 40 Celsius (oC)
  • 80%
  • N/A
  • N/A
  • N/A Statampere (sA)
  • N/A
  • N/A
  • Semi Automatic
  • N/A

Trade Information

  • Ahmedabad
  • 500 Unit Per Month
  • 4-7 Days
  • Contact us for information regarding our sample policy
  • Carton packing available.
  • All India
  • An ISO 9001:2008 certified company.

Product Description

We are a distinguished manufacturer, exporter and supplier of a wide range of Semi Automated Biochemistry Analyzer that is used diagnose thromboses, anemia, leukemia and other problems with blood. Offered product is manufactured by our experienced professionals in line with international quality standards using the finest quality components. Moreover, this analyzer is also tested on defined parameters to ensure its proper functioning. Clients can avail this Semi Automated Biochemistry Analyzer from us in numerous specifications at most competitive prices.

Features:

  • User friendly software
  • Editing of patient ID, Name (12 characters), Factor
  • Print out of laboratory name & Doctor's name.
  • Coagulation test like PT with Magnetic Stirrer.
  • Storage of 2000 test results in the memory with patient ID.
  • PS2 Keyboard connection optional.
  • Lamp Saver mode.

 METHODS OF CALCULATIONS

  • Absorbance
  • End Point with standard / factor
  • Kinetics
  • Fixed time
  • Differential
  • Coagulation
  • Multipoint upto 10 standards

 ASPIRATION SYSTEM

  • Continuous flow system with bi-directional Pump.
CUVETTES : DUAL MODE
  • Flow Cell of 18
REMOVABLE CUVETTES
  • Macro, Semi Micro, Micro

COAGULATION

Mixing by magnetic motor / stirrer INR / ISI Value % / Seconds Auto / Manual start

Parameters

PT / APTT / Fibrinogen

Filter

405 nm / 630 nm.



ELISA STRIP READER

Wells

8 position

Filters

405 nm/450 nm / 630 nm

Methods

Cut-off / Multi standard with EP / KIN / Fix Time

O.D. Range

0 - 3.5A


OPTICAL SYSTEM

Principle

Absorption spectrometry

Range of measurement

From 0.1 to 3.0A

Nominal spectral range

Automatic via filter wheel

Filters

340, 405, 450, 505, 546, 578, 630 and 670nm interference type

Bandwidth

10 nm (+ 2nm)

Reading error

+ 5% at 0.10 A
+ 2% at 1.00 A
+ 2% at 2.00 A

Light source

Halogen lamp

Zero

Automatic

Settings

Monochromatic and Bichromatic readings.

Detector

Schottkey type Photodiode - Silicon

THERMOSTAT SYSTEM

Peltier regulated 25o, 30o & 37oC programmed

Accuracy

+ 0.2oC

CUVETTES - DUAL MODE

Flow cell of 18 L

Removable cuvettes

Macro, Semi-micro & Micro

PRINTER

Type

Fast Thermal Graphic

Printing speed

50 mm/sec

Dots per line

384 dots/line

Paper

Thermosensitive - 57 mm wide, Easy Loading

Programming

On/Off test wise

SCREEN AND KEYBOARD

Screen

Graphic LCD 240 x 128 pixels

Back Light

Blue LED Back lit

Keyboard

Tactile Soft - Touch

SUCTION SYSTEM

Continuous flow system with peristaltic gear pump.

Sipping volume can be programmed from 200 l to 5.0 ml.

PROGRAMMING

Table of tests

up to 235

Table of units

up to 9 units

Quality control storage of the last 30 results

Memory

512 KB EEPROM


QUALITY CONTROL

2 Controls per test - Normal & Abnormal

Levy-Jennings charts

Westgard's rules

POWER / DIMENSIONS

Voltage

110-220 V

Frequency

50 - 60 Hz

Maximum power

110W

Temperature

10o to 40oC

Maximum relative humidity

80%

Dimensions

45 cm x 41 cm X 17

Weight

8 kgs

For more details please check the PDF
